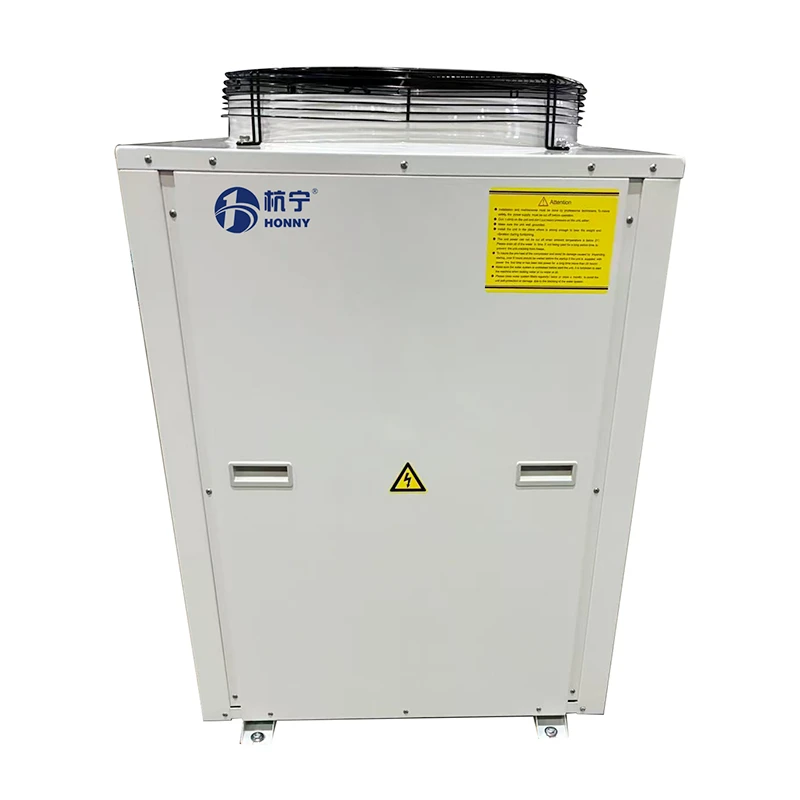

This HVAC pool heat pump works together with your building's heating and cooling system. It is a smart choice for large projects where you want to manage pool temperature and indoor climate together. Our company, Hangzhou Honny Heat Energy Technology Co., Ltd, started in 2009. We have 17 years of pool heat pump experience. Our factory covers 7000 square meters. We have 52 skilled workers. We follow all environmental rules. This product is built with a mature manufacturing process.
Two Models with Full Technical Data
| Parameter | KFRS-20F2Y | KFRS-40F2Y |
| Power supply | 380/3/50 V/ph/Hz | 380/3/50 V/ph/Hz |
| Rated heating capacity | 20 kW | 40 kW |
| Rated input power | 4.4 kW | 8.2 kW |
| Circulating water flow | 5.8 m³/h | 11.4 m³/h |
| Water resistance | ≤25 kPa | ≤40 kPa |
| Hot water temperature | <40°C | <40°C |
| Compressor type | Rotary | Scroll |
| Refrigerant | R410a | R22 |
| Noise | 58 dB(A) | 64 dB(A) |
| Net weight | 120 kg | 300 kg |
| Unit dimension (mm) | 775×775×980 | 1390×740×1640 |
| Packing dimension (mm) | 780×780×1020 | 1490×790×1800 |
| Water pipe connection | DN25 (1") | DN40 (1-1/2") |
| Ambient temperature | -5~43°C | -5~43°C |
| Water side heat exchanger | PVC-Ti | PVC-Ti |
| Water flow switch | Optional | Optional |
| Parameter | KFRS-20F2Y | KFRS-40F2Y |
| Power supply | 380/3/50 V/ph/Hz | 380/3/50 V/ph/Hz |
| Rated heating capacity | 20 kW | 40 kW |
| Rated input power | 4.4 kW | 8.2 kW |
| Circulating water flow | 5.8 m³/h | 11.4 m³/h |
| Water resistance | ≤25 kPa | ≤40 kPa |
| Hot water temperature | <40°C | <40°C |
| Compressor type | Rotary | Scroll |
| Refrigerant | R410a | R22 |
| Noise | 58 dB(A) | 64 dB(A) |
| Net weight | 120 kg | 300 kg |
| Unit dimension (mm) | 775×775×980 | 1390×740×1640 |
| Packing dimension (mm) | 780×780×1020 | 1490×790×1800 |
| Water pipe connection | DN25 (1") | DN40 (1-1/2") |
| Ambient temperature | -5~43°C | -5~43°C |
| Water side heat exchanger | PVC-Ti | PVC-Ti |
| Water flow switch | Optional | Optional |
We can provide other sizes and power types of this HVAC pool heat pump based on your request.
We accept third party inspection for this product. Our company holds a weekly delivery meeting. Multiple departments work together to ensure on time delivery. Repeat orders have shorter lead times. We provide dedicated after sales support. We follow ISO9001 quality control. Process inspection is 100% full check. Trade terms are EXW and FOB. Standard payment is 30% deposit and 70% before shipment. This HVAC pool heat pump is a good choice for agents who work on engineering projects that need HVAC integration. Choose it for reliable performance.
