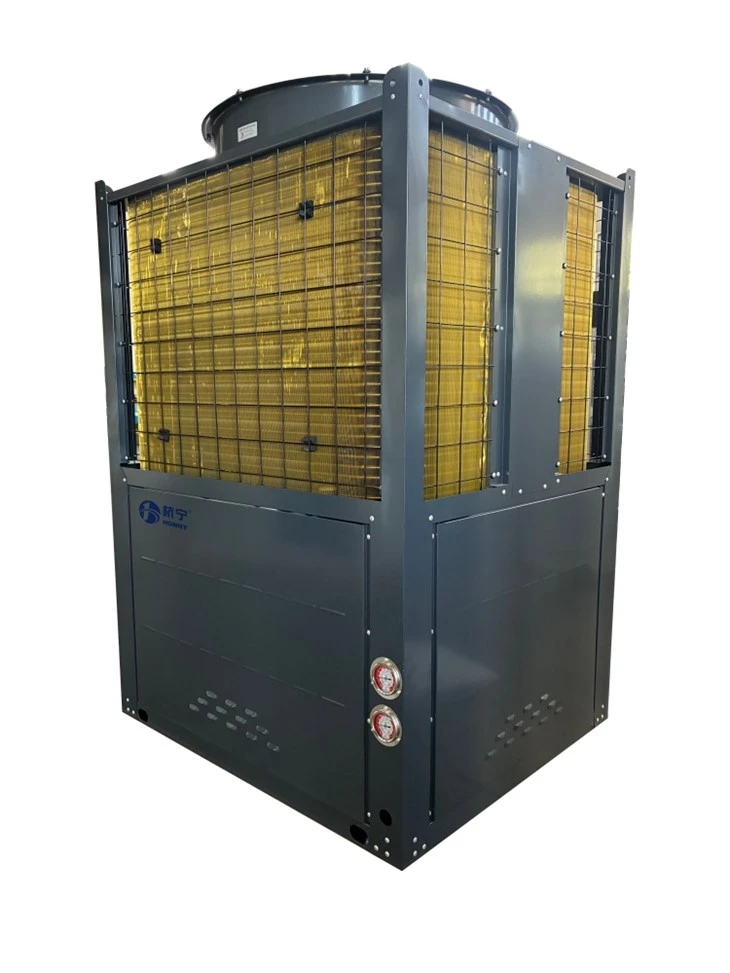

Commercial Air Source Heat Pump Water Heater
video
Commercial Air Source Heat Pump Water Heater

Commercial Air Source Heat Pump Water Heater

This commercial air source heat pump water heater is designed for hotels, hospitals, schools, and factories that require large volumes of hot water. Available models include KFRS-18E2, KFRS-22E2, KFRS-36E2, and KFRS-72E2. This commercial air source heat pump water heater is primarily designed for hot water production, while floor heating is provided as an additional function. The specifications are identical to those of our other commercial models.
Big Water Volume for Commercial Applications

This commercial air source heat pump water heater is designed for hotels, hospitals, schools, and factories that require large volumes of hot water. Available models include KFRS-18E2, KFRS-22E2, KFRS-36E2, and KFRS-72E2.
This commercial air source heat pump water heater is primarily designed for hot water production, while floor heating is provided as an additional function. The specifications are identical to those of our other commercial models.
We also offer a high-temperature version of this commercial air source heat pump water heater, capable of providing outlet water temperatures of up to 75°C. Standard high-temperature models include KFRS-20K7 and KFRS-45K7. These units use R134a refrigerant and scroll compressors, with optional variable-frequency water pumps and variable-frequency fans.

Custom Samples and Payment

Custom sample development typically takes about one month. We provide design drawings for customer approval before production begins. After approval, a sample unit is manufactured and tested, and the performance test report is supplied together with the sample.

Our standard payment terms are a 30% deposit upon contract signing and the remaining 70% before shipment. For custom products, the payment terms are 50% deposit and 50% before shipment.

We accept payments in USD, EUR, and RMB. Discounts are available for large-volume orders.

Our factory complies with applicable environmental regulations. We can also assist customers in obtaining certifications required by the destination market, such as CE and RoHS. Certification costs are borne by the customer, while we provide the necessary technical documentation and sample support.


Full Technical Data Table
ParameterKFRS-18E2KFRS-22E2KFRS-36E2KFRS-72E2
Heating capacity18 kW22 kW36 kW72 kW
Rated input power4.2 kW5.3 kW8.6 kW16.8 kW
COP4.294.154.194.17
Rated hot water output386 L/h473 L/h770 L/h1550 L/h
Hot water temperature20-55°C20-55°C20-55°C20-55°C
Floor heating capacity14 kW17.5 kW28 kW58 kW
Floor heating COP3.93.83.83.8
Circulating water flow3.1 m³/h3.8 m³/h6.2 m³/h7.8 m³/h
Water resistance≤35 kPa≤35 kPa≤50 kPa≤50 kPa
Compressor typeRotaryRotaryRotaryScroll
Number of compressors1112
RefrigerantR410AR410AR410AR410A
Noise58 dB58 dB64 dB64 dB
Net weight120 kg125 kg250 kg270 kg
Unit dimension (mm)1000×390×13701000×390×1370950×1110×16702025×1030×1995
Water pipe connectionDN25DN25DN40DN40
Ambient temperature-15~43°C-15~43°C-15~43°C-15~43°C
Water flow switchOptionalOptionalBuilt-inBuilt-in
Built-in water pumpOptionalOptionalOptionalNot built-in
Auxiliary electric heatingSupportedSupportedSupportedSupported
Indoor signal controlSupportedSupportedSupportedSupported
Modular controlNot supportedNot supportedSupportedSupported
ParameterKFRS-18E2KFRS-22E2KFRS-36E2KFRS-72E2
